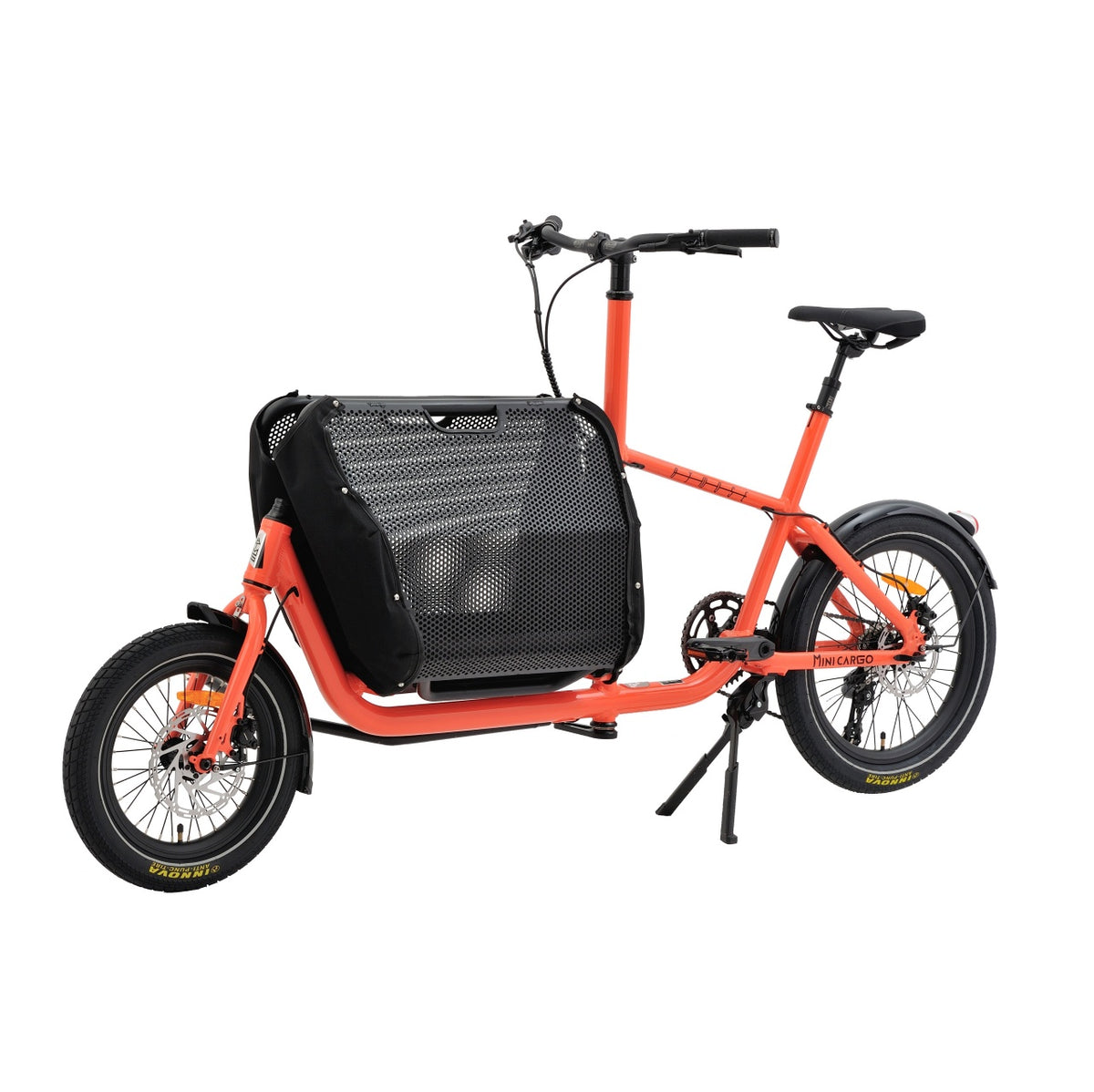

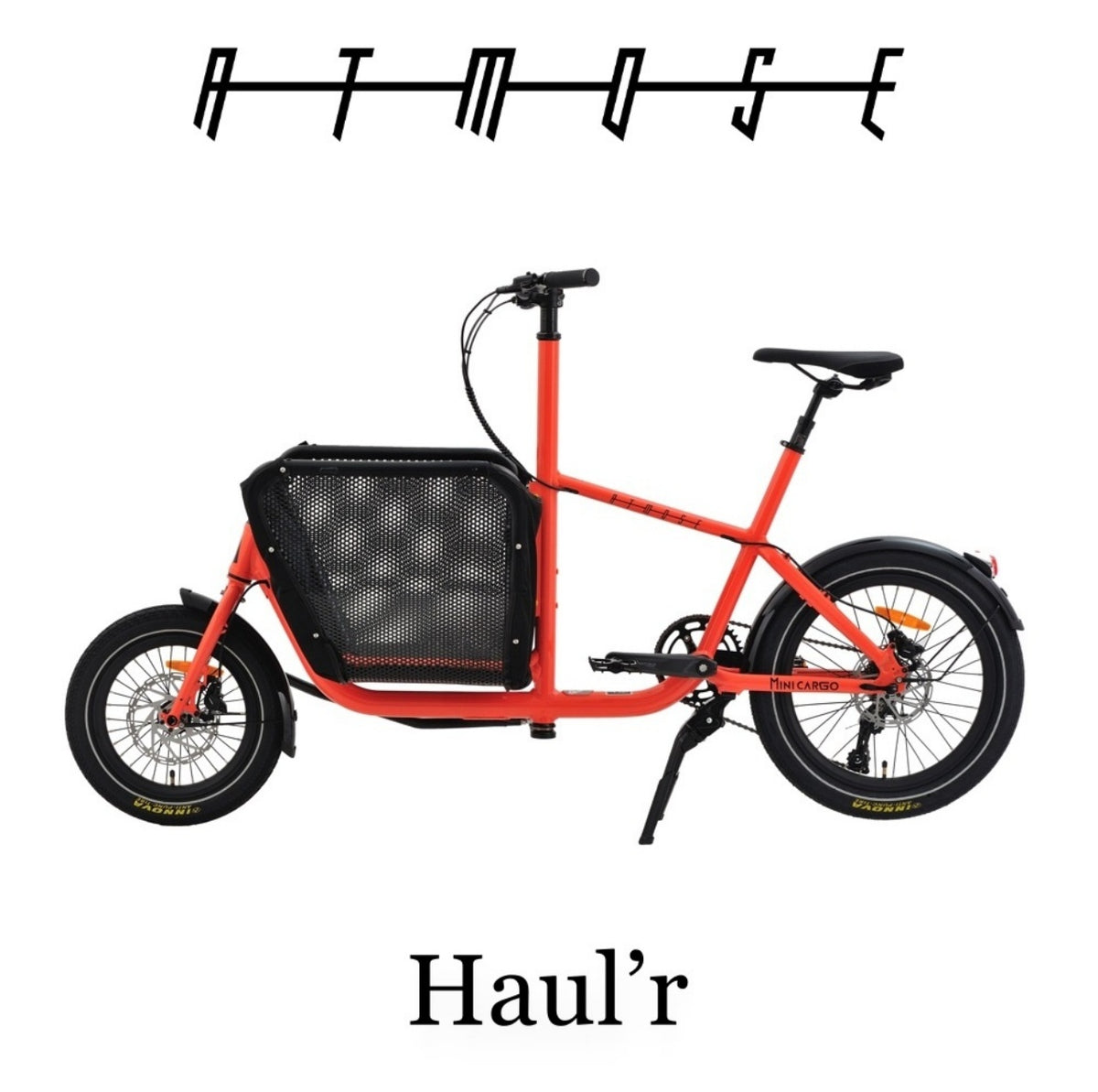

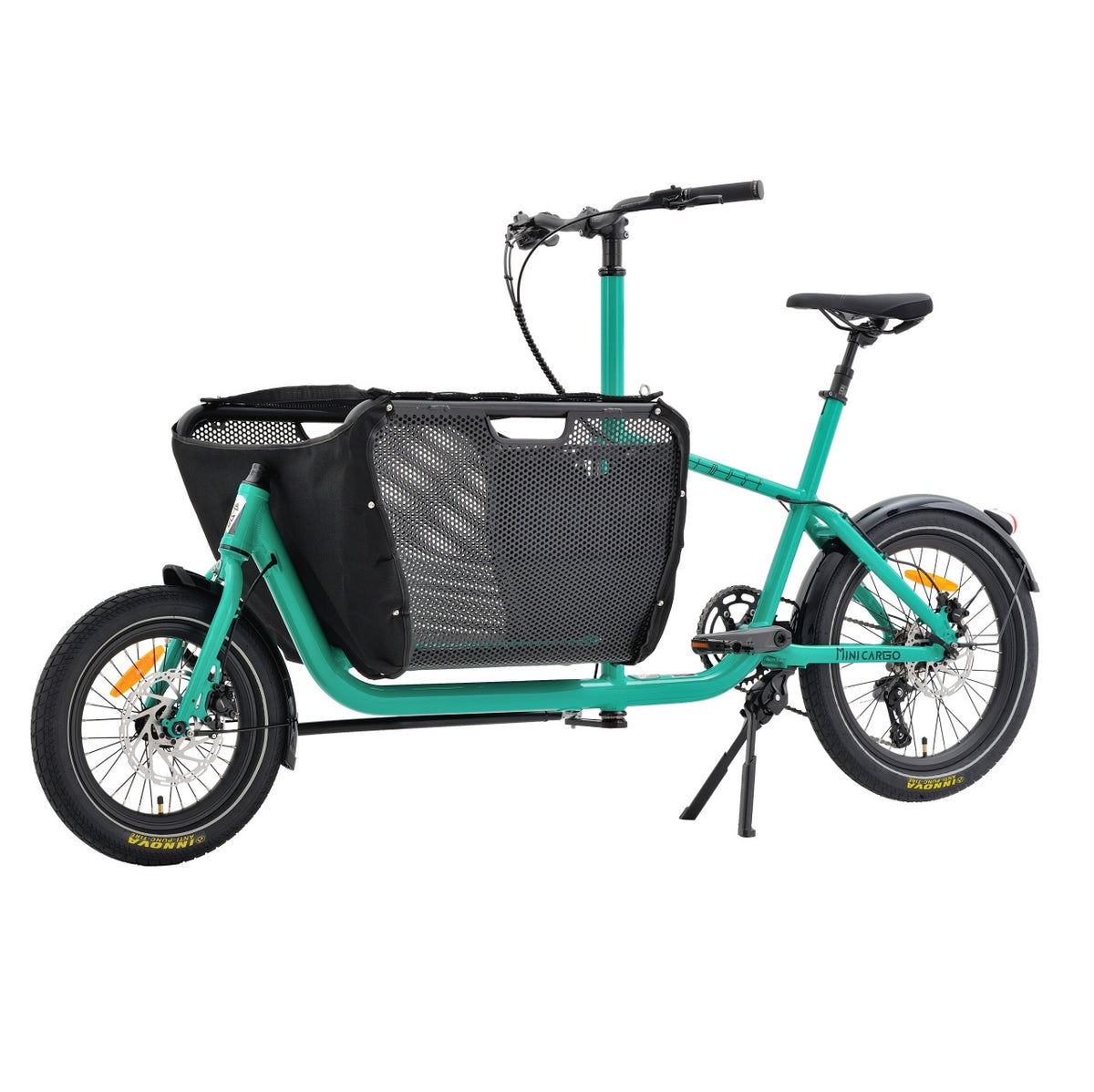

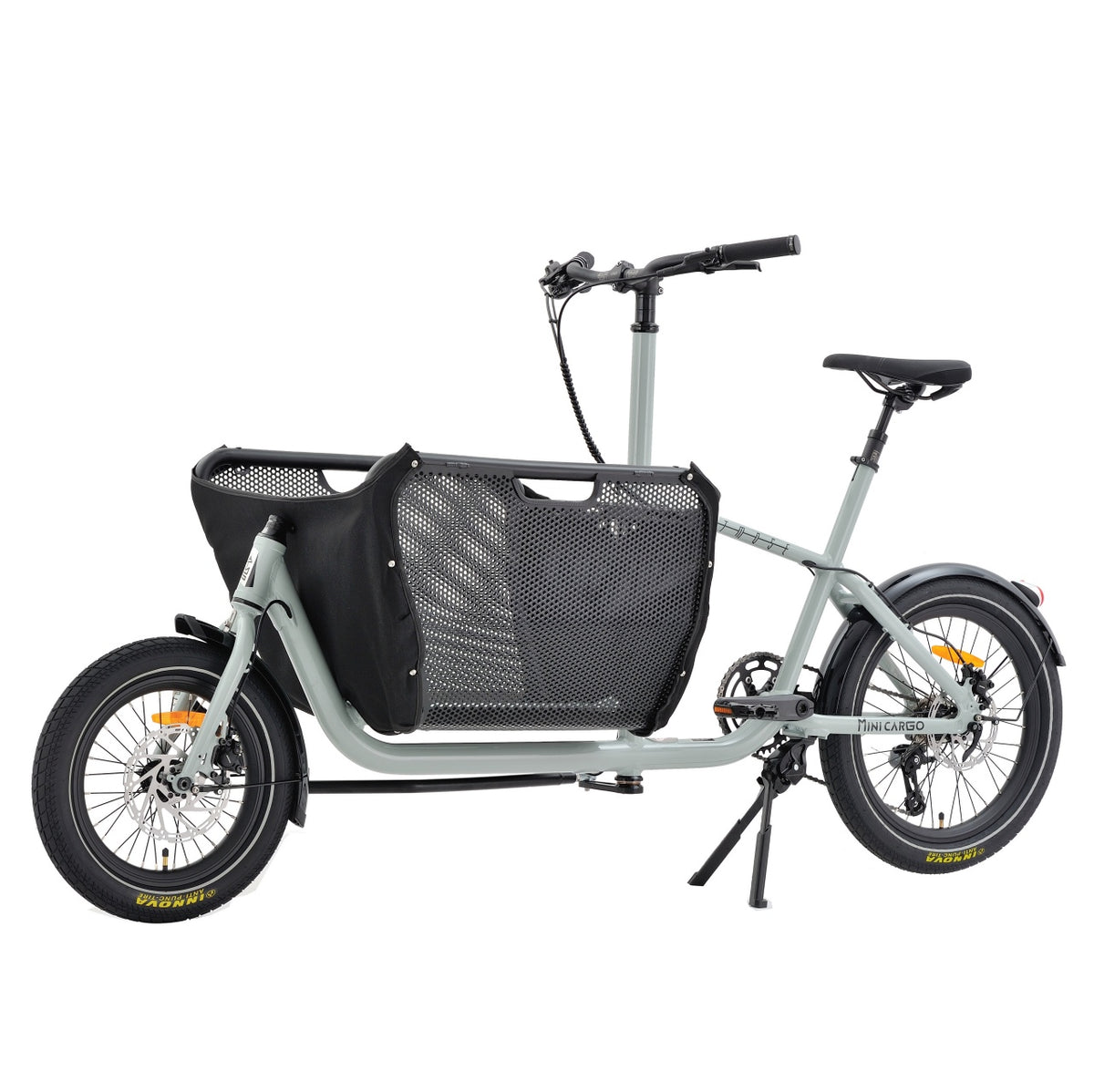

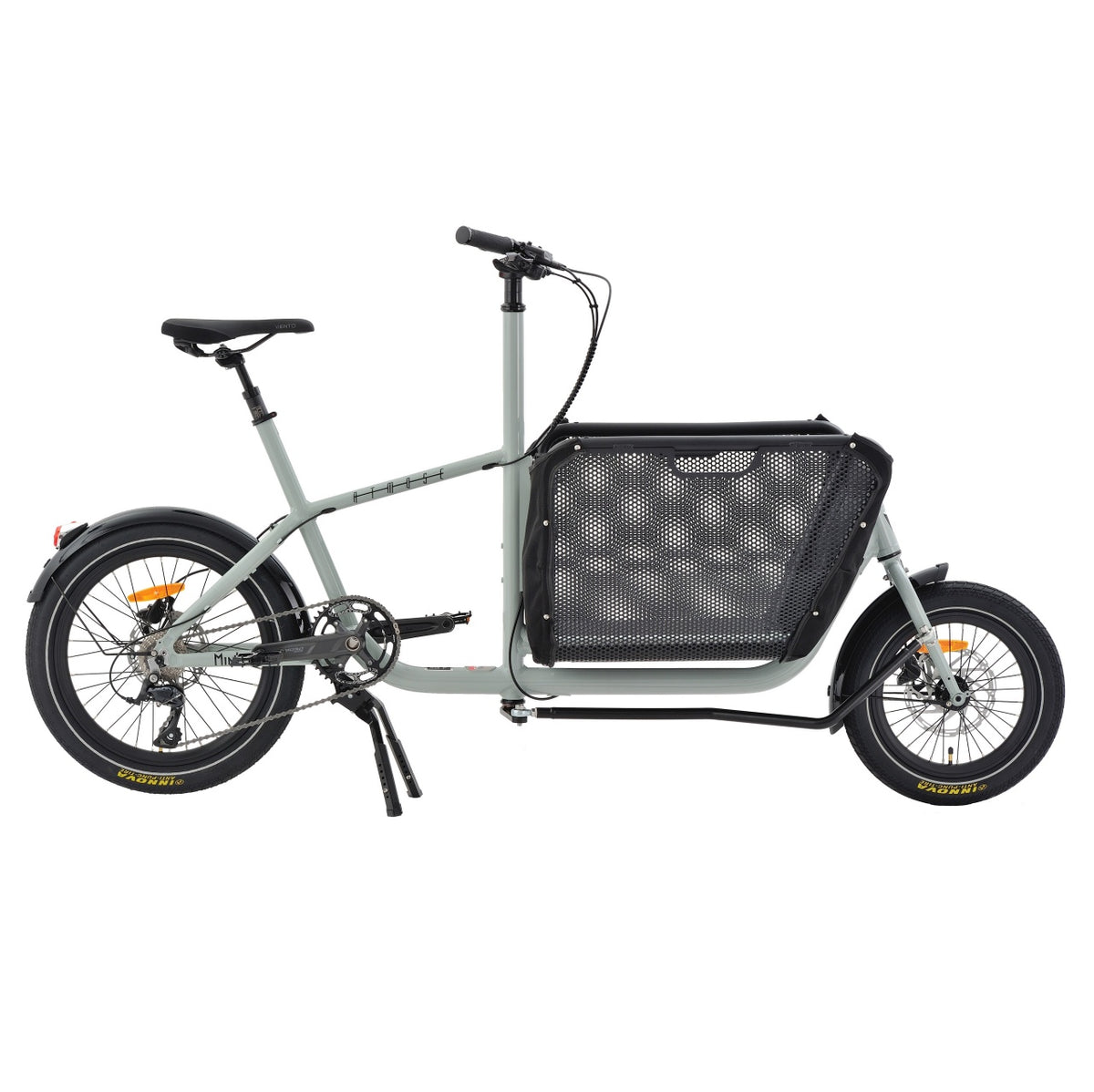

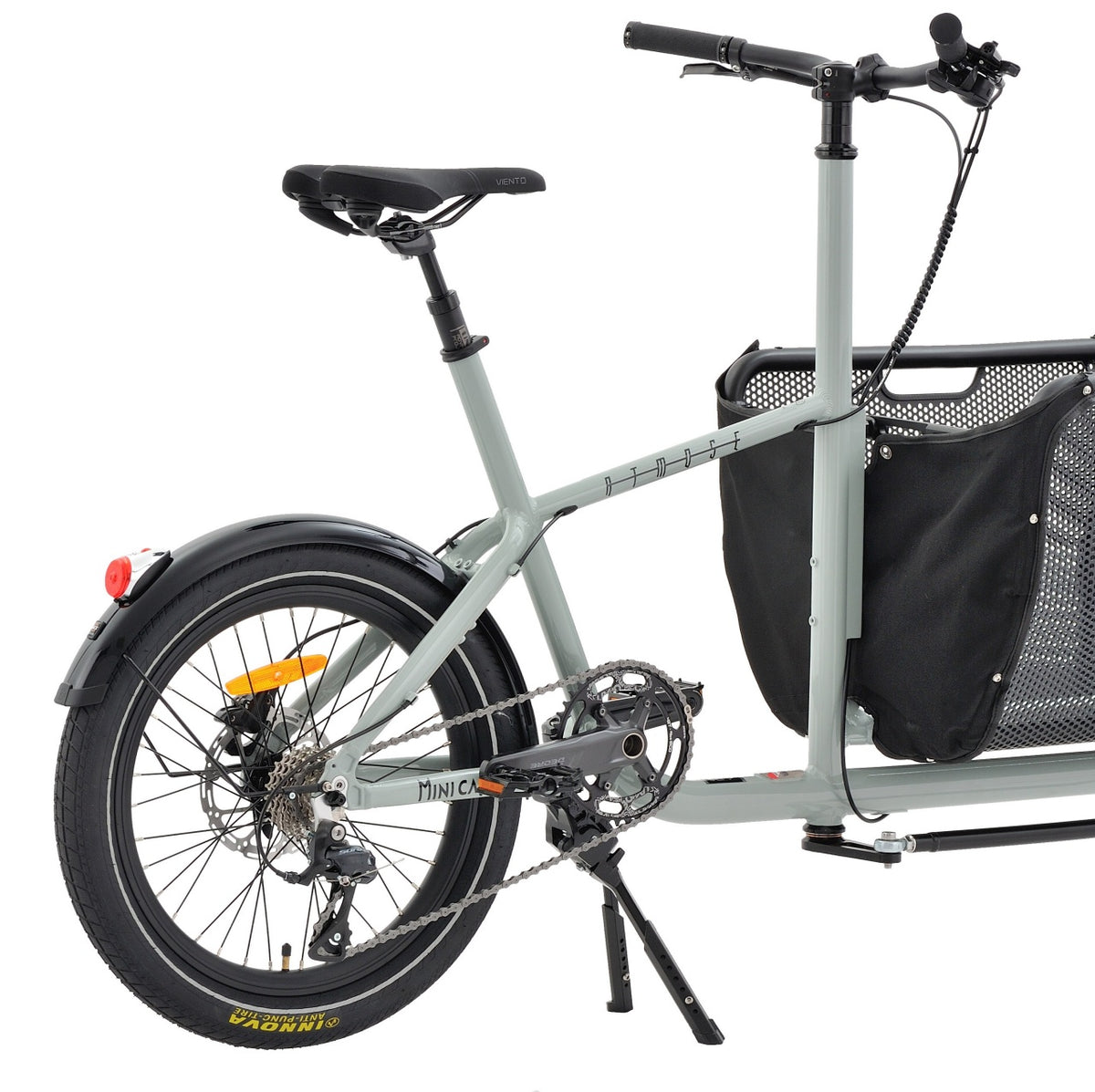

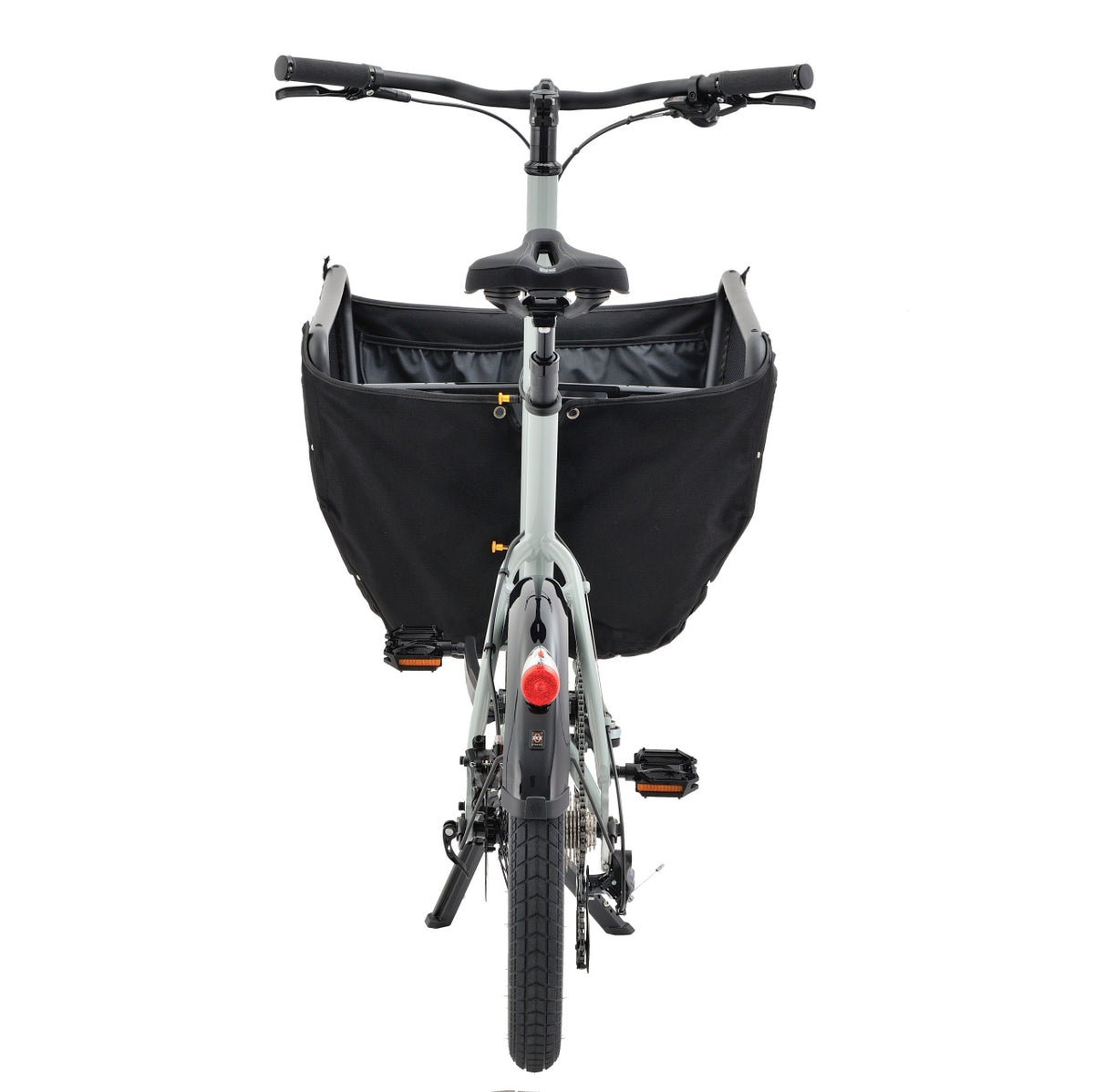

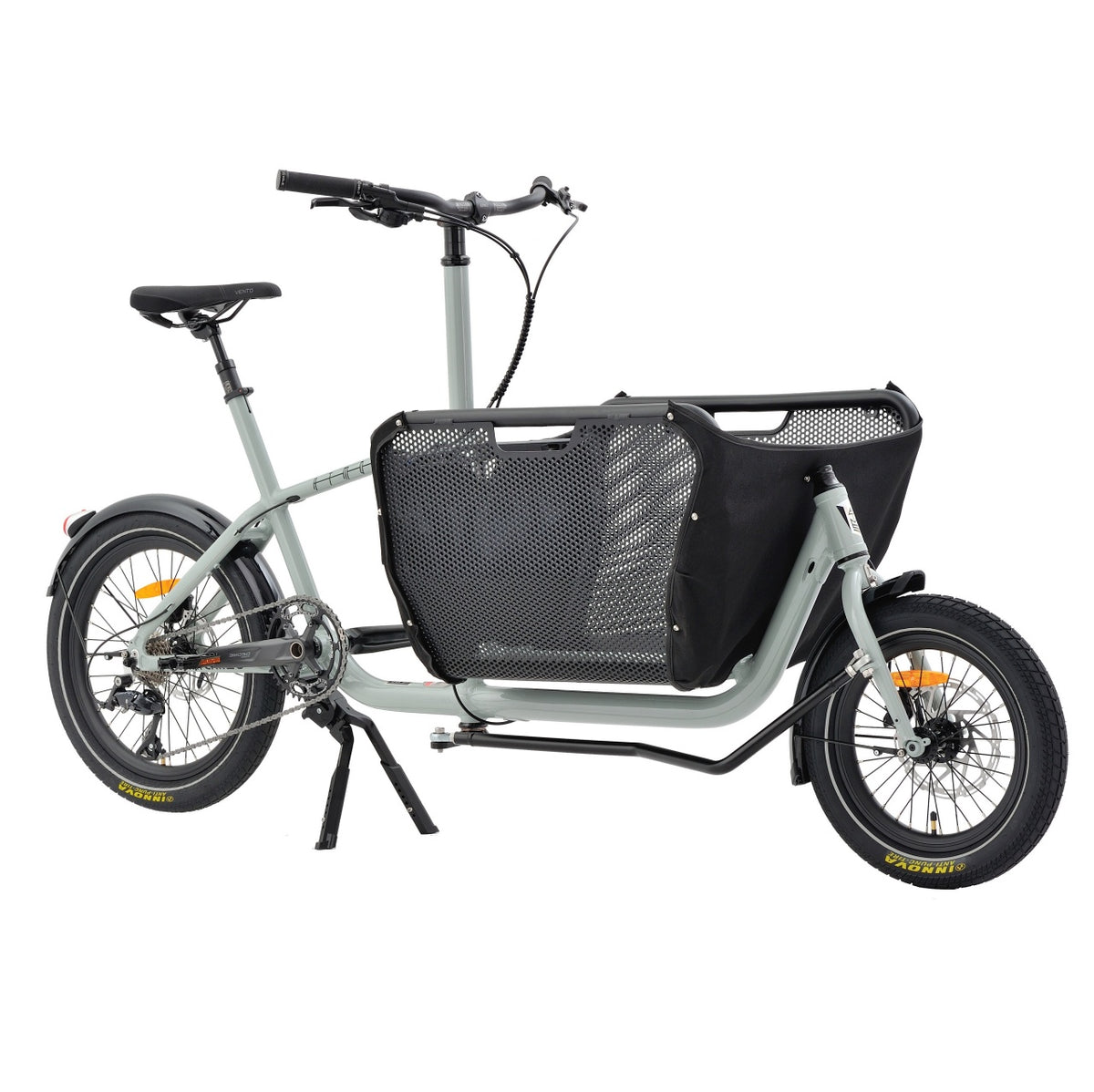

The "ATMOSE Haul'r P1" foldable cargo bike.
A new generation model with a lightweight aluminum frame and large cargo capacity for comfortable urban use.
ATMOSE Haul'r P1 | The next-generation cargo bike connecting city and nature
Commuting, shopping, pets, camping – all with this one bike. A smart cargo bike with a folding mechanism. The "Haul'r P1" is an urban compact cargo bike proposed by ATMOSE, a cargo bike brand from California. It combines high load capacity and comfortable riding performance in an easy-to-handle 1960mm overall length. This is a next-generation cargo bike that harmonizes minimalist design and functional beauty.Features
- Lightweight & Compact Design: Uses a 6061 aluminum frame, with a vehicle weight of only 23kg. A minimal overall length of 196cm designed for maneuverability in urban areas.

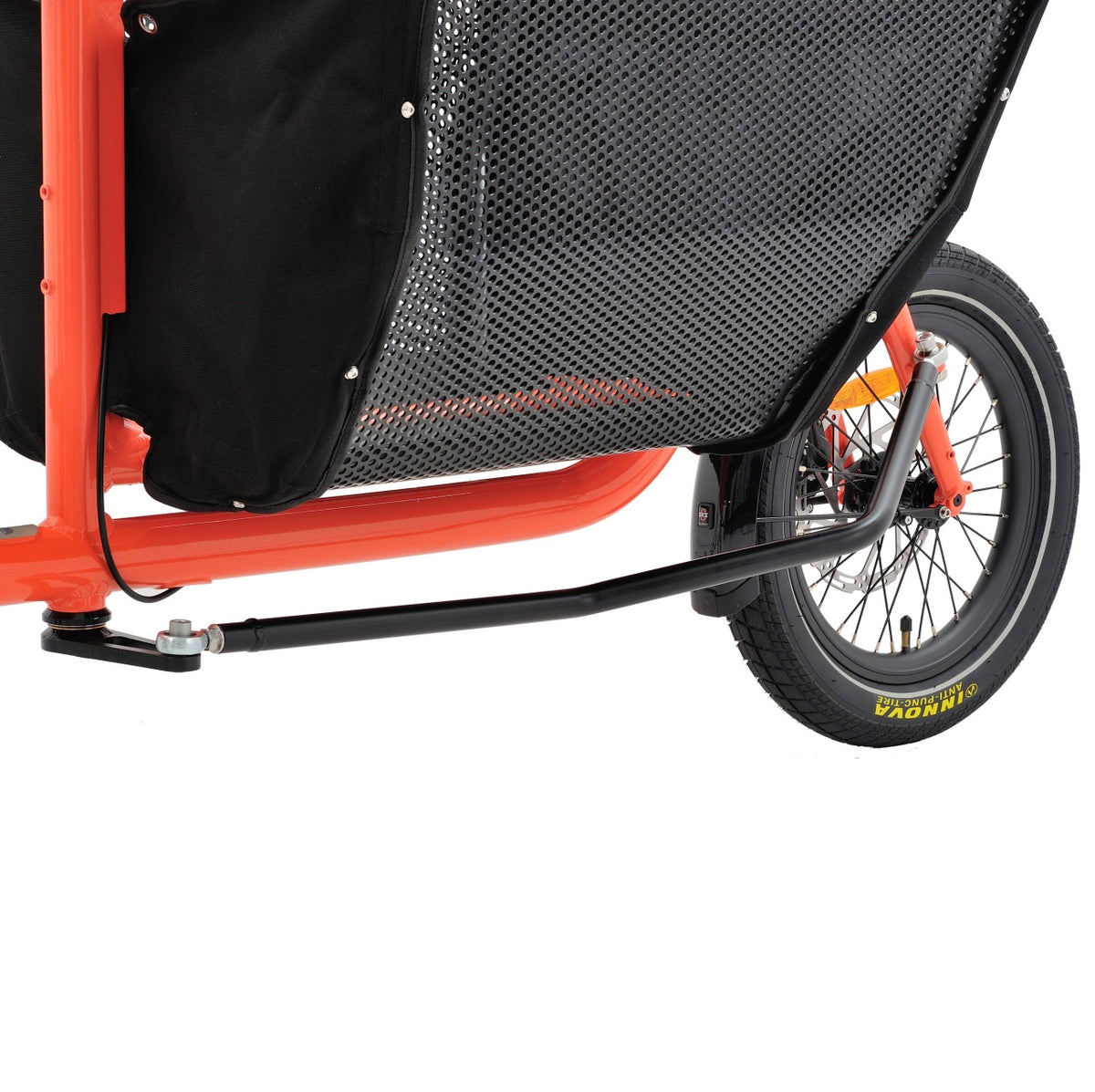

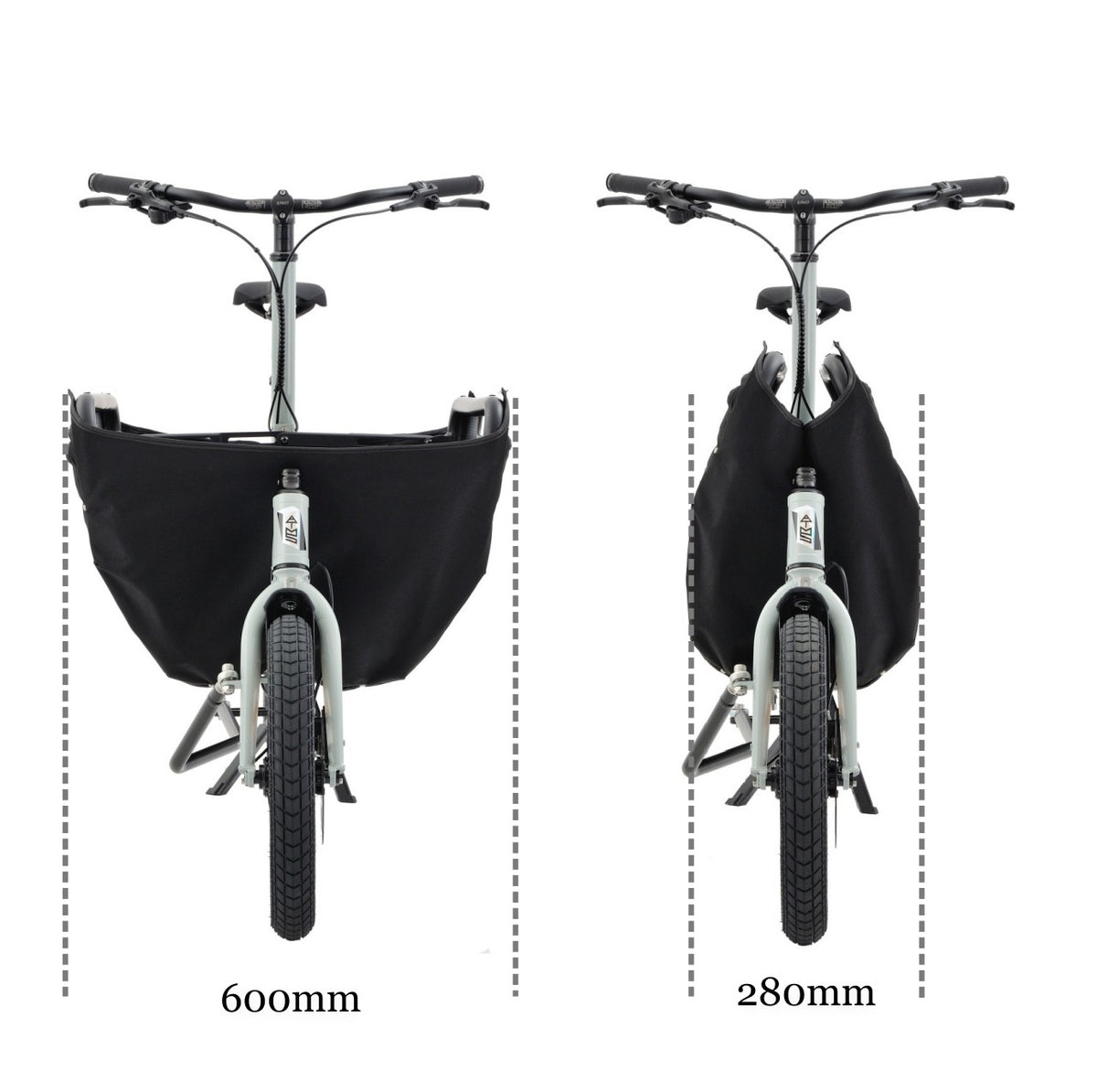

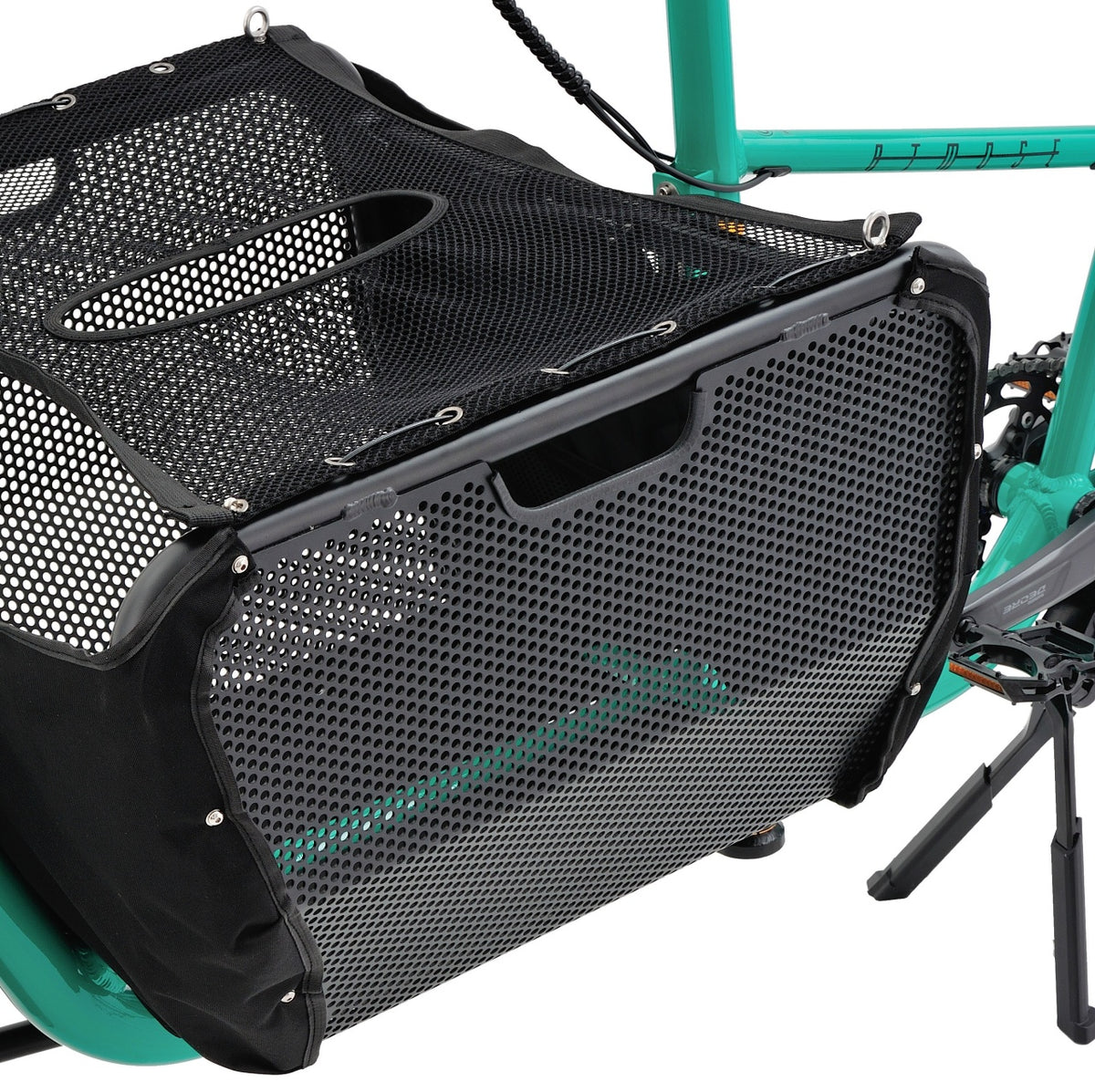

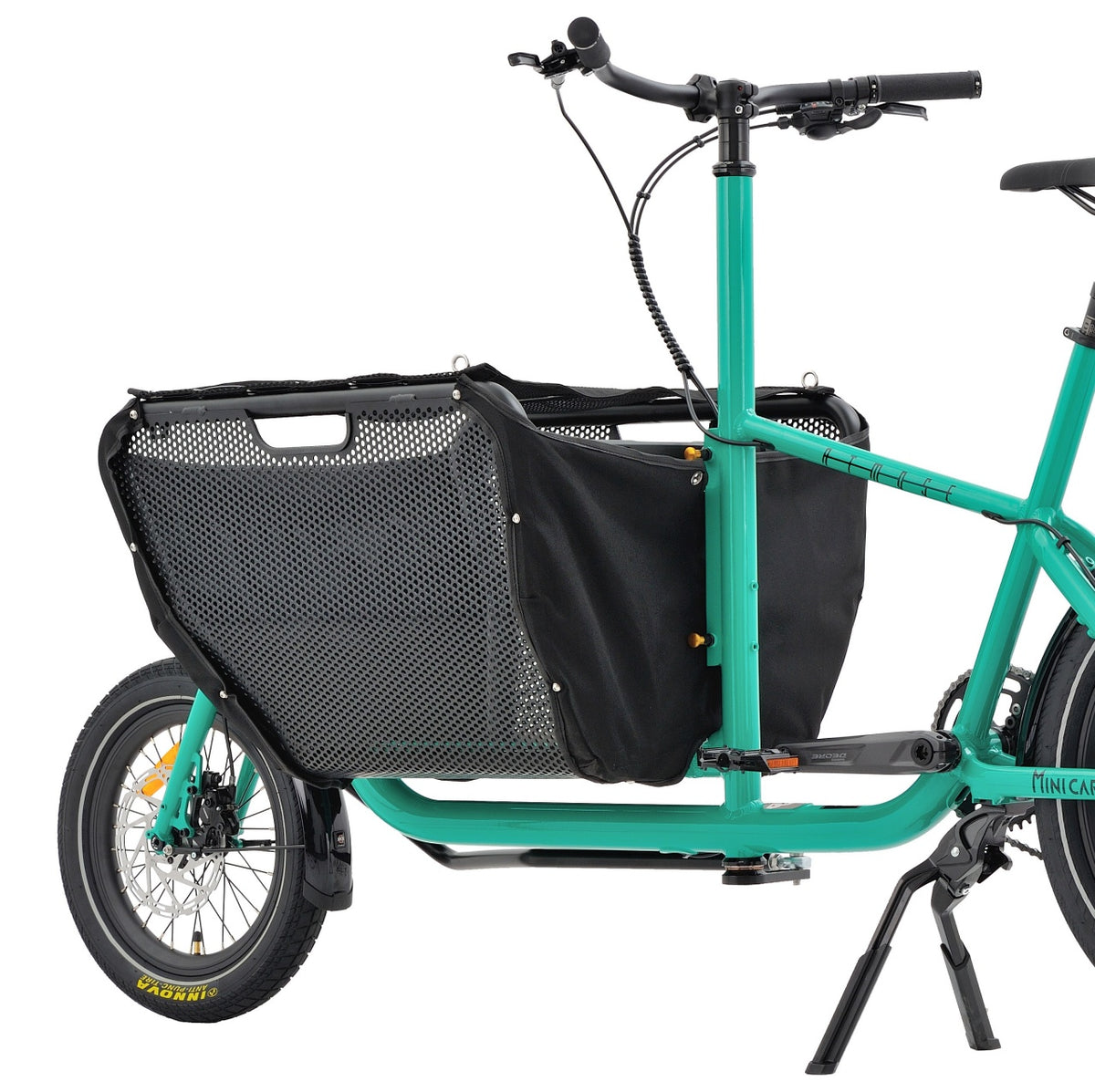

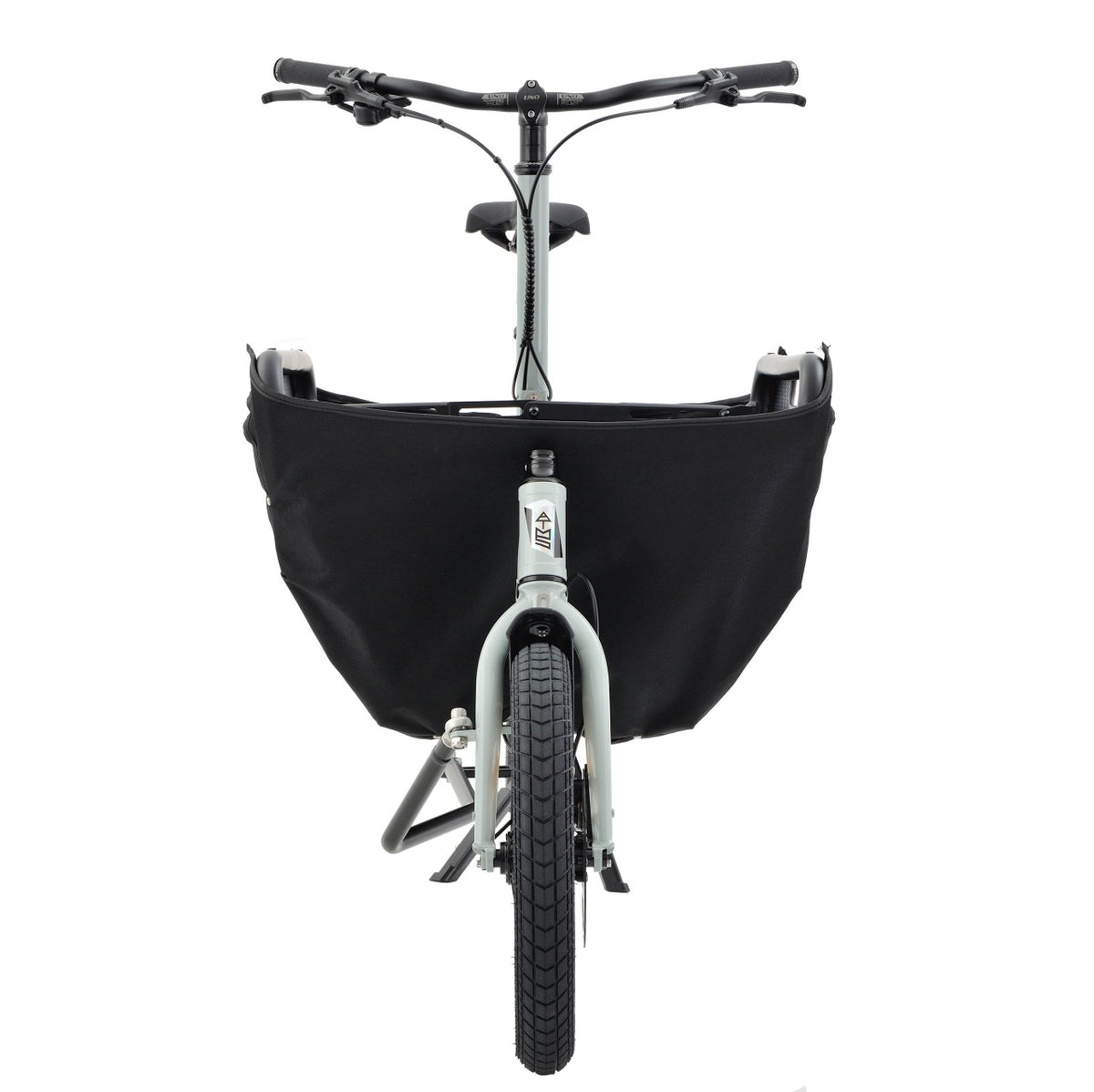

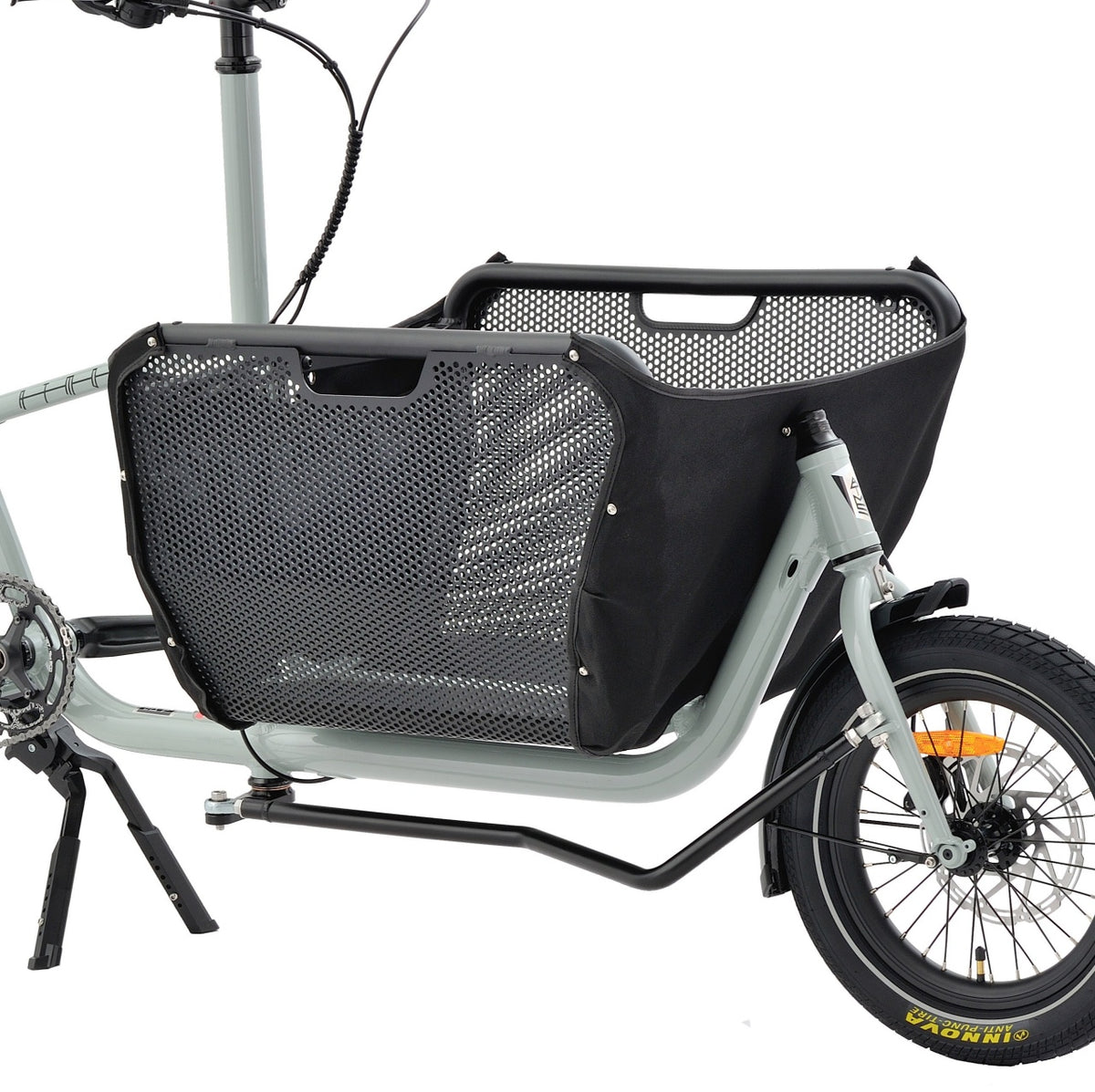

- Large Capacity x Folding Cargo System: Equipped with a large-capacity front cargo space with a load capacity of 35kg. When folded, it becomes compact to the width of a standard bicycle, allowing for space-saving parking.
- Practical Parts Configuration: Adopts SHIMANO components (DEORE x SORA mix) and front/rear hydraulic disc brakes. Achieves high braking power and stable operability.

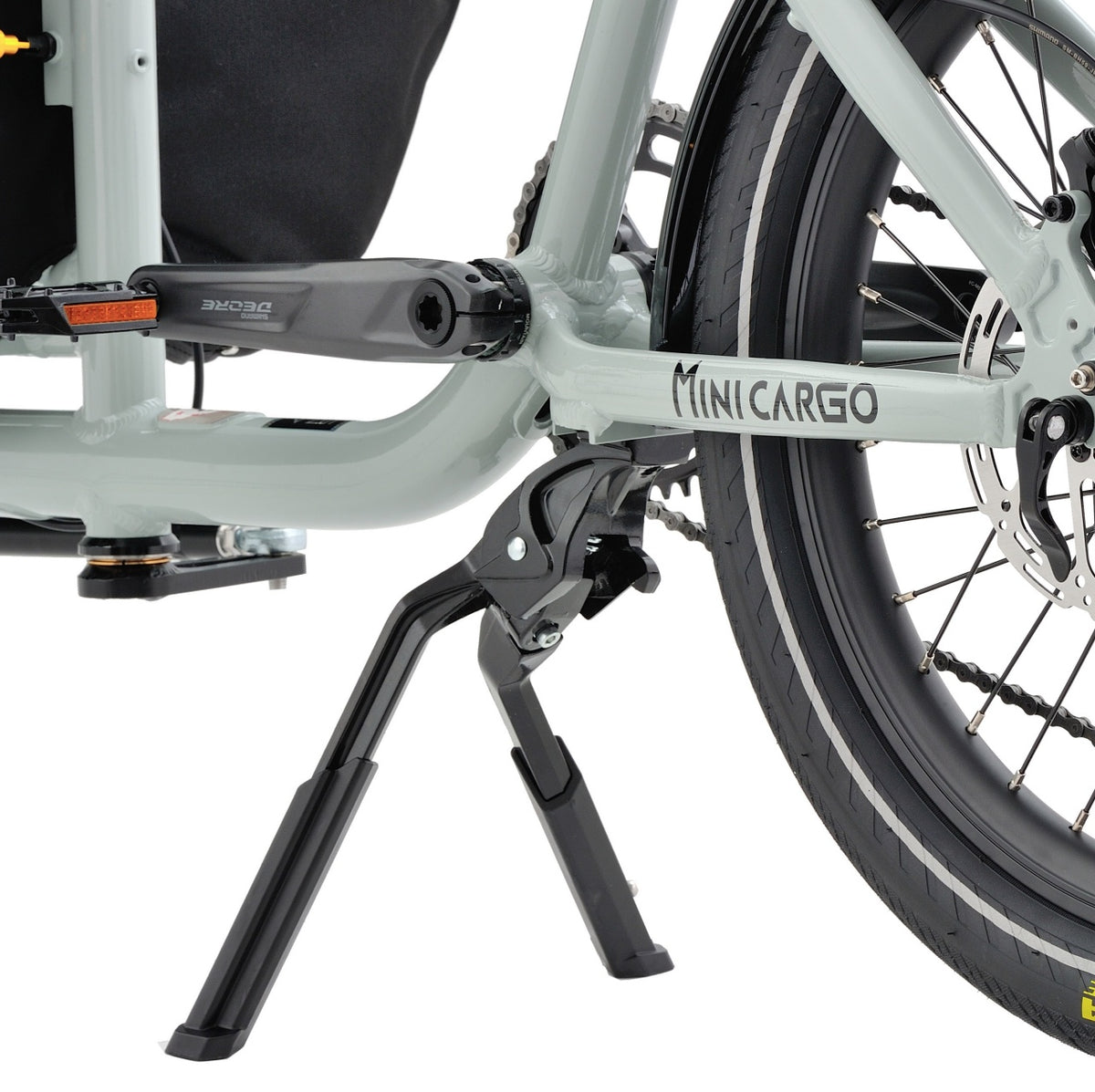

- High Stability and Comfortable Ride: Equipped with thick tires (front 16×2.4”, rear 20×2.4”) to ensure stable riding performance even when loaded. Comes standard with a robust W-leg kickstand.
- Fits Urban Life: Can smoothly navigate narrow streets, and the folding design prevents it from getting in the way in limited parking spaces. Widely adaptable for daily use to outdoor activities.
SPEC
- Frame: 6061 Aluminum

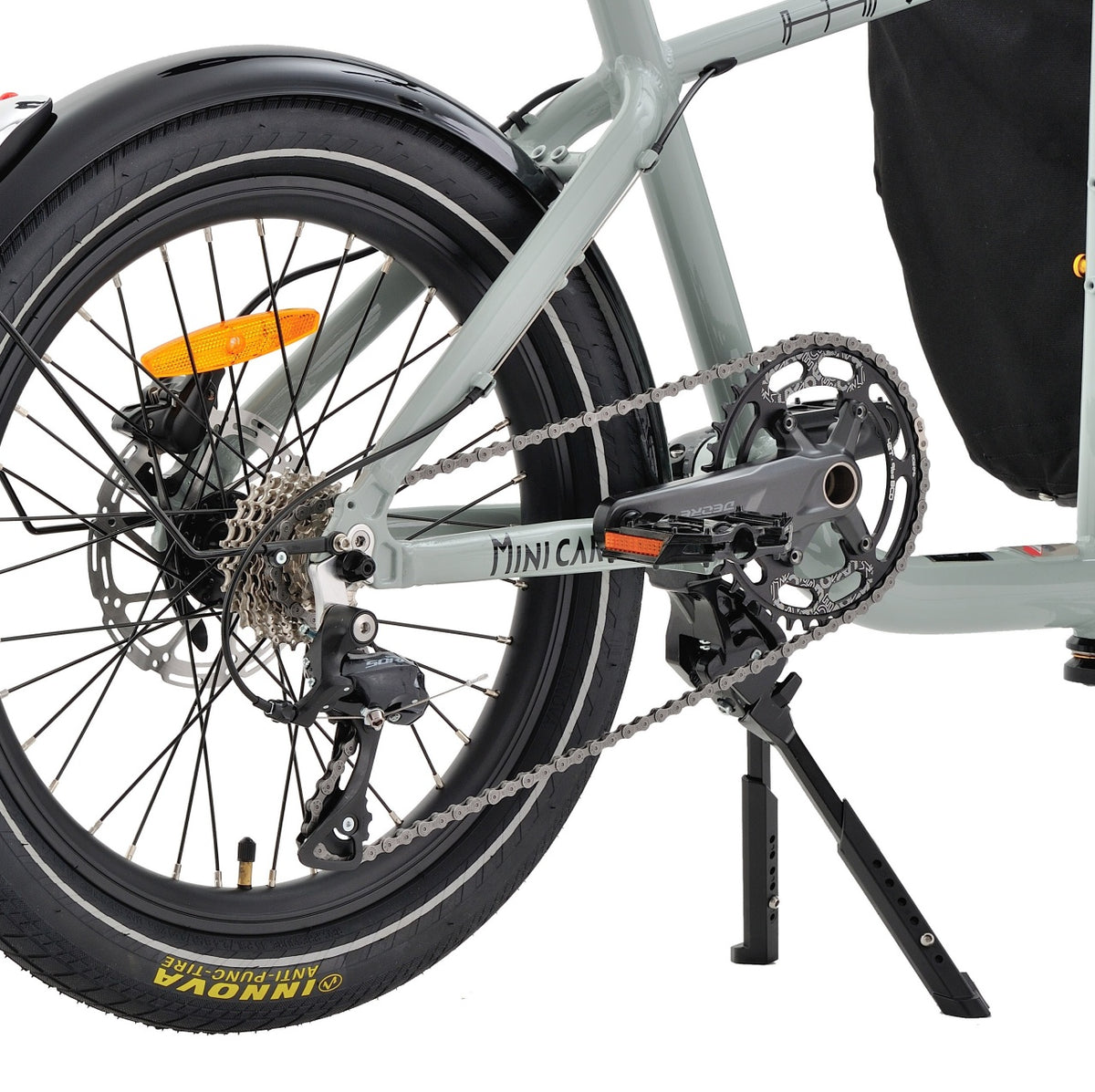

- Drivetrain: SHIMANO 1x9SPEED (DEORE×SORA)
- Crank: 32T 170mm

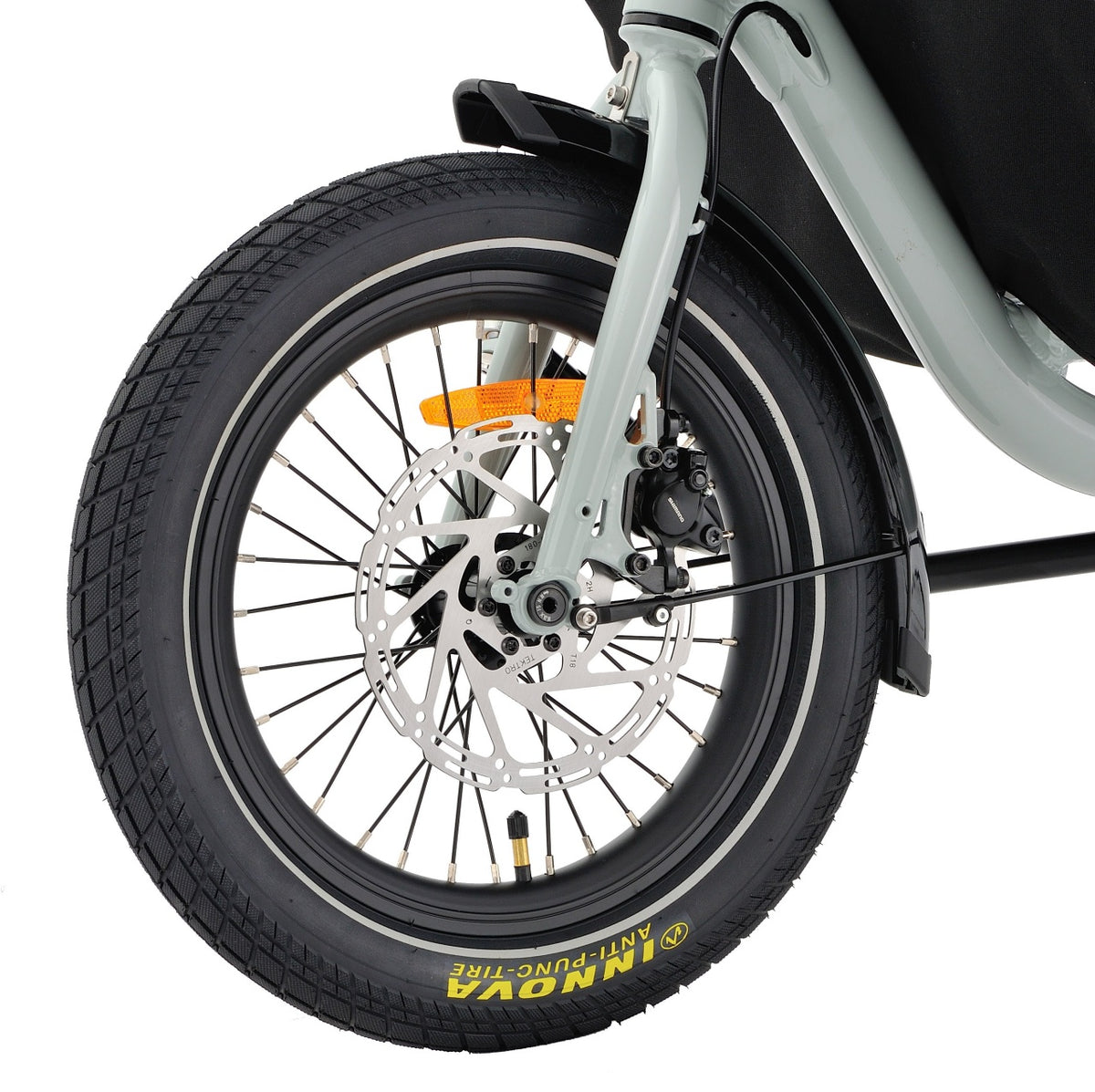

- Brake: Shimano MT200 Hydraulic Disc (Tektro F180 / R160 rotors)
- Wheels: F/12x100 thru-axle, R/9x135 quick release, P25DE double wall rims (F32H / R36H)
- Tires: Innova Front 16×2.4”, Rear 20×2.4”
- Body Size: 196×60 (27.6)×107cm
- Vehicle Weight: 23kg
- Maximum Cargo Load: 35kg
- Recommended Height: 150〜185cm
- Colors: Gray / Green / Red
SPECIFICATIONS
- Tire Size: Front 16×2.4 / Rear 20×2.4
- Gears: 1×9 Speed
- Pedals: Included
- Frame: 6061 Aluminum
- Fork: Steel
- Crankset: Shimano Deore FC-M5100-1 (32T / 170mm)
- BB: N/A
- Front Derailleur: -
- Rear Derailleur: Shimano Sora RD-R3000-SS
- Shifters: Shimano Sora SL-R3000
- Sprocket: Shimano CS-HG400-9

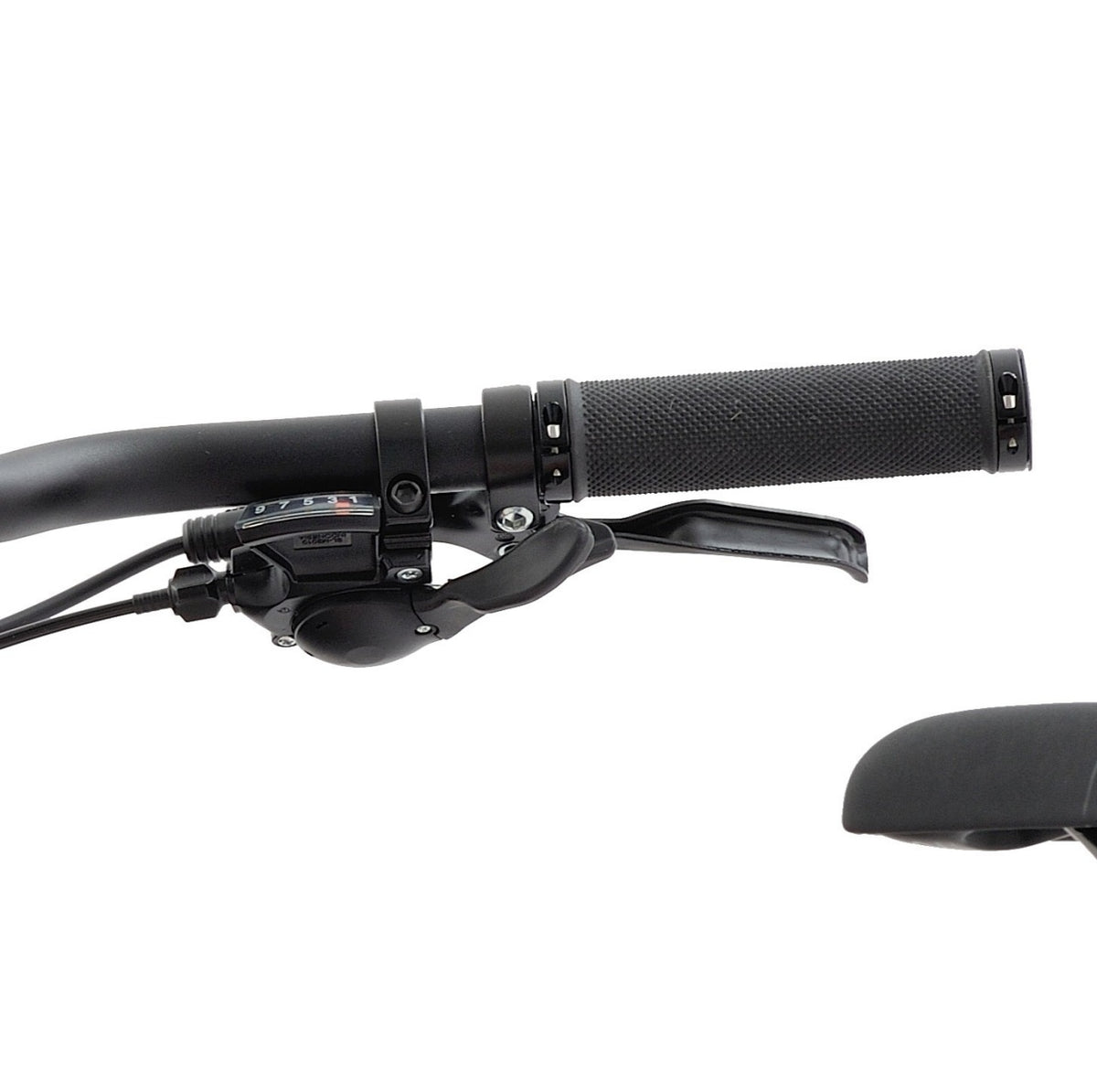

- Brake Levers: Shimano BL-MT200 (Hydraulic Disc)
- Brakes: Shimano MT200 (Hydraulic Disc / Flat Mount)
- Rotors: Tektro F180 / R160
- Wheels: F/12×100 Thru-Axle Hub, R/9×135 Quick Release, P25DE Double Wall Rim (F32H / R36H)
- Tires: Innova Front 16×2.4” / Rear 20×2.4”

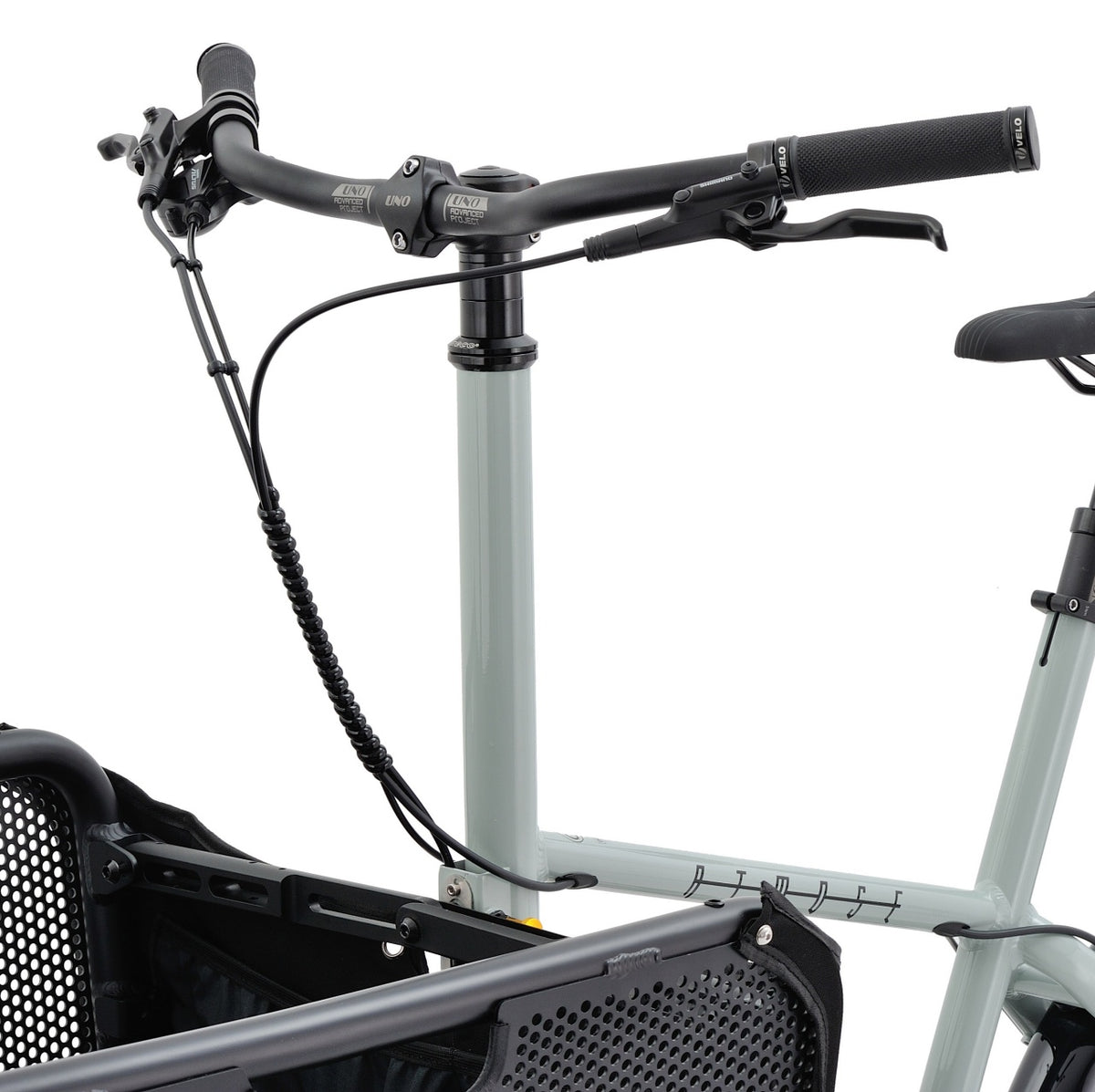

- Handlebar: UNO-HBTRI φ25.4×φ22.2×W600
- Stem: UNO 15° / 25.4mm×45mm
- Headset: Neco Bearing Threadless

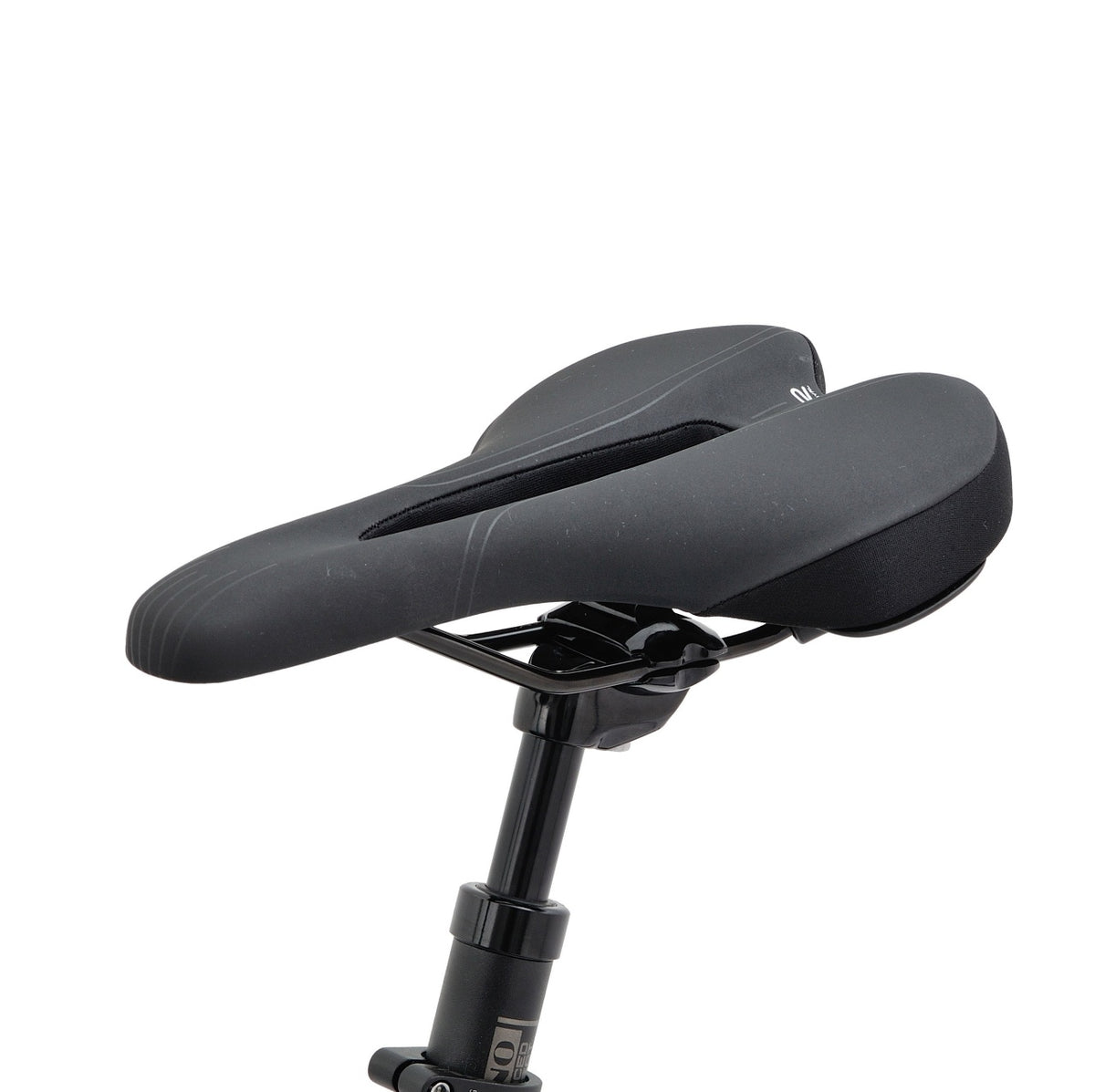

- Saddle: SR-VIENTO
- Seatpost: Promax alloy 450mm
- Note: Manufacturer images may differ from actual specifications.
